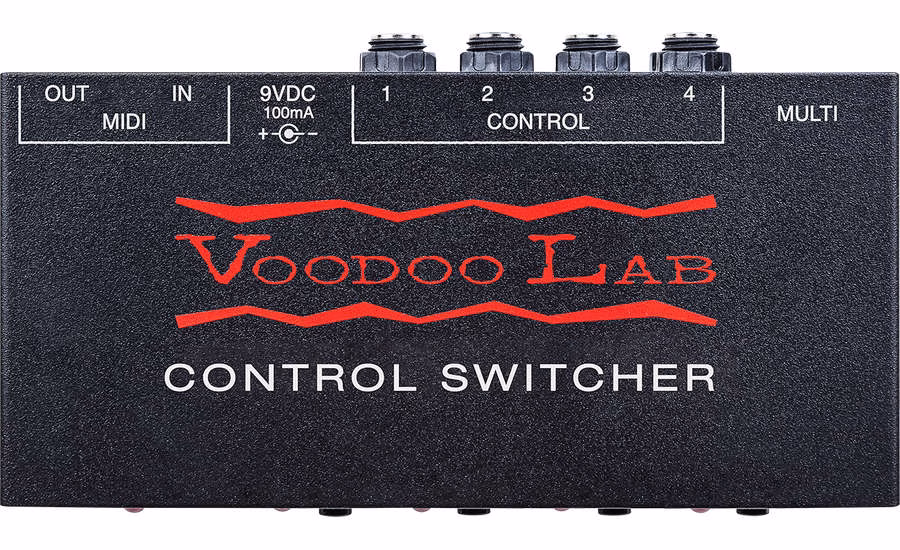

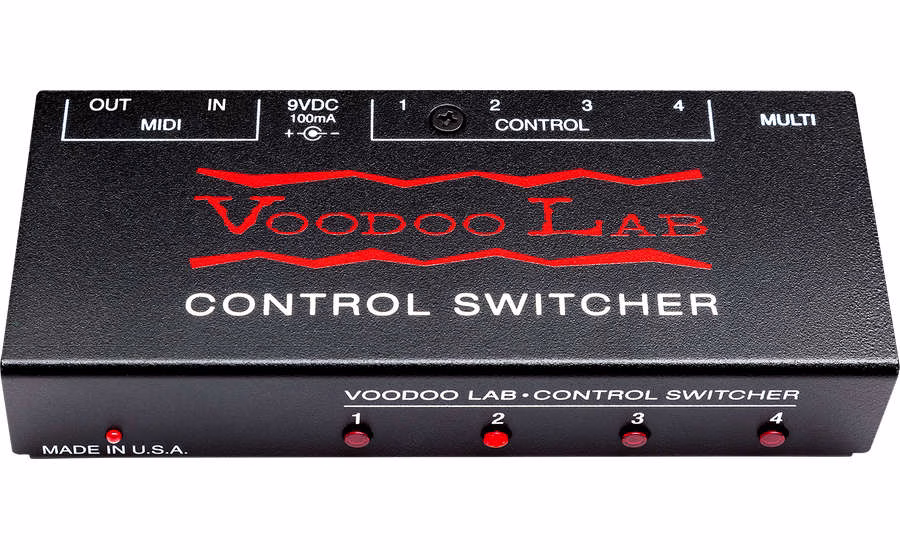

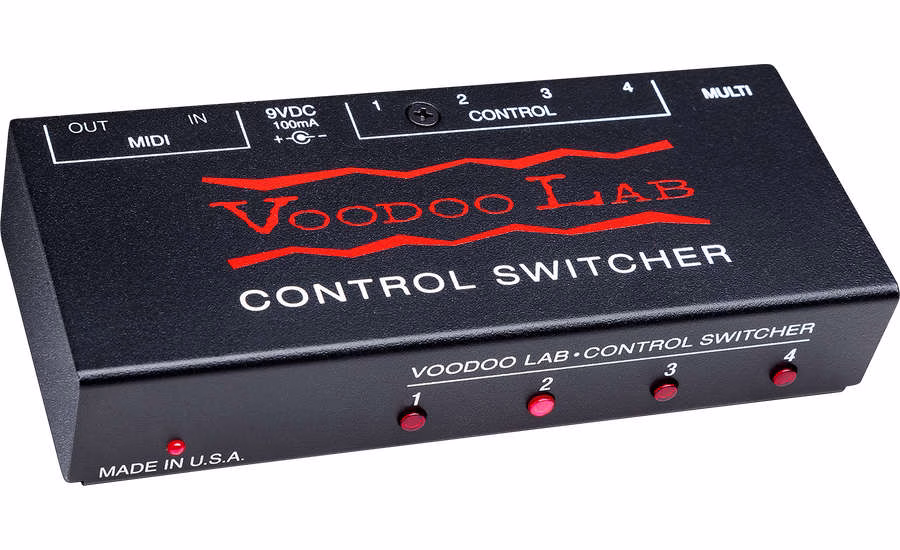

Control Switcher MIDI Amp Commander
Add MIDI Automation to Channel Switching Amps!
Switch channels on multiple amps and easily automate any non-MIDI functions with Control Switcher. Using a Voodoo Lab Ground Control Pro or any standard MIDI-capable foot controller, Voodoo Lab’s Control Switcher gives you instant MIDI programmability for controlling all footswitchable amp functions including channel switching, reverb, boost, EQ, loop and more.

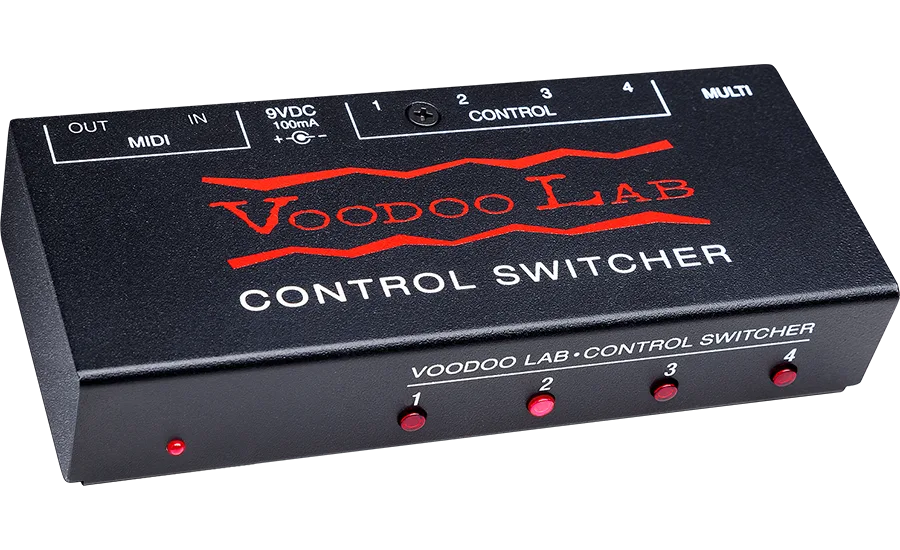

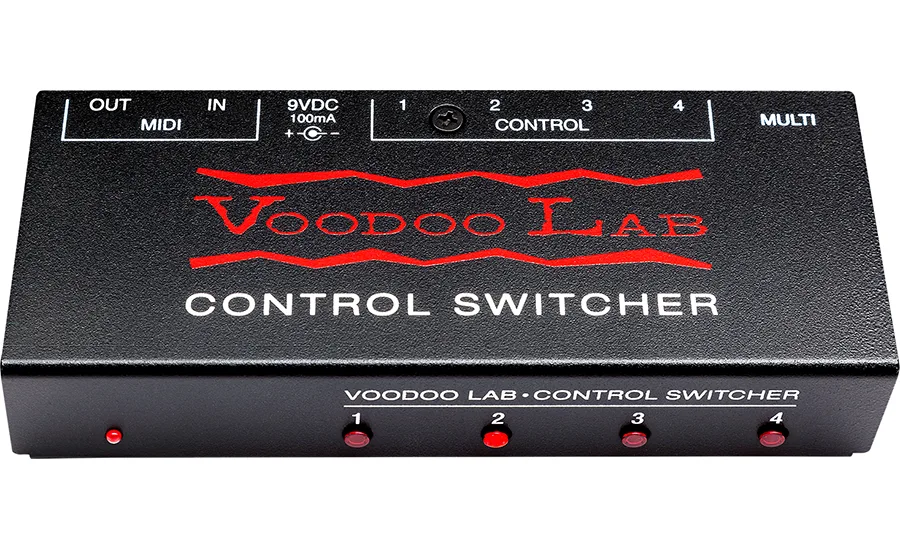

Control Switcher Features 4 completely isolated relays with front panel instant access buttons, separate 1/4” mono outputs and a multi-DIN connector. Runs off a standard 9V power supply and is compact enough to mount behind an amp, inside a rack, or on a pedalboard.
Control Switcher Features
- 4 isolated relay controls
- Front panel instant access buttons
- Separate 1/4" mono jacks
- Multi-DIN connector for modern amps
- Controls any footswitch function
- Compatible with Ground Control Pro or any MIDI controller

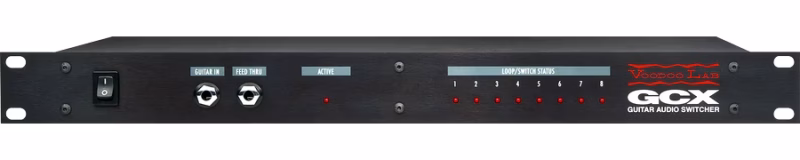

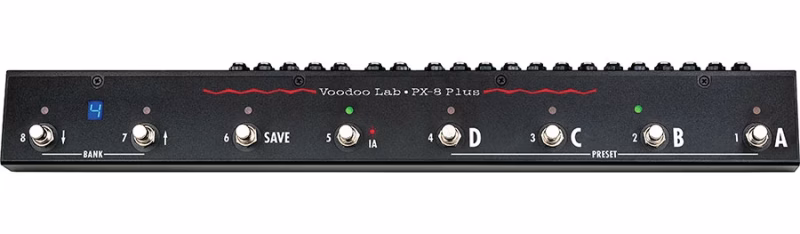

- Phantom powered by GCX or Pedal Switcher via MIDI cable
- Conveniently power from any Pedal Power 9VDC output
- AC adapter included
- Hand-built in the U.S.A.
Control Switcher MULTI Connector Cable (Part# CXC)
Connects Voodoo Lab Control Switcher to an amplifier multi-pin footswitch jack.
Each cable is custom-made-to-order for your specific amp model.
Please email info@voodoolab.com to confirm compatibility and to place your custom cable order.
Control Switcher Specifications

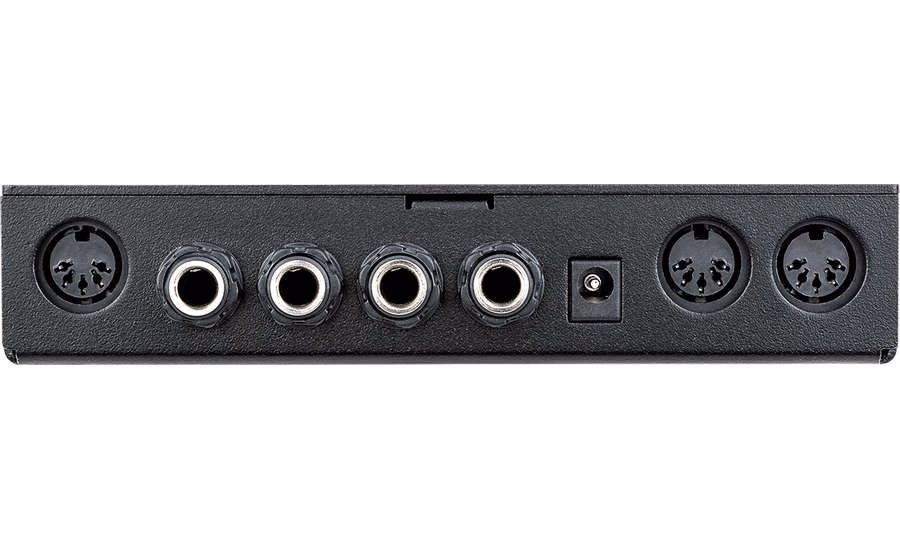

- Inputs/Outputs
- 1/4” control jacks (4): Accesses amp switch functions
- 5-Pin MULTI DIN connector: For amps with multi-pin cable control jacks
- MIDI
- MIDI In: Accepts MIDI commands and provides phantom power
- MIDI Out: Passes MIDI commands to other MIDI devices
- Controls/Switches
- LED function buttons (4): Switches functions on/off, saves programs
- Power Requirements
- 9-12VDC or 9VAC at 100mA
- 5.5mm x 2.1mm barrel connector, center negative polarity
- Physical
- Dimensions: 6.2" x 3.1" x 1.2" (157 x 79 x 30 mm)
- Weight: 9.6 oz. (272g)
- Warranty
- 5-year warranty in North America. Other regions contact your country's distributor for warranty details.
