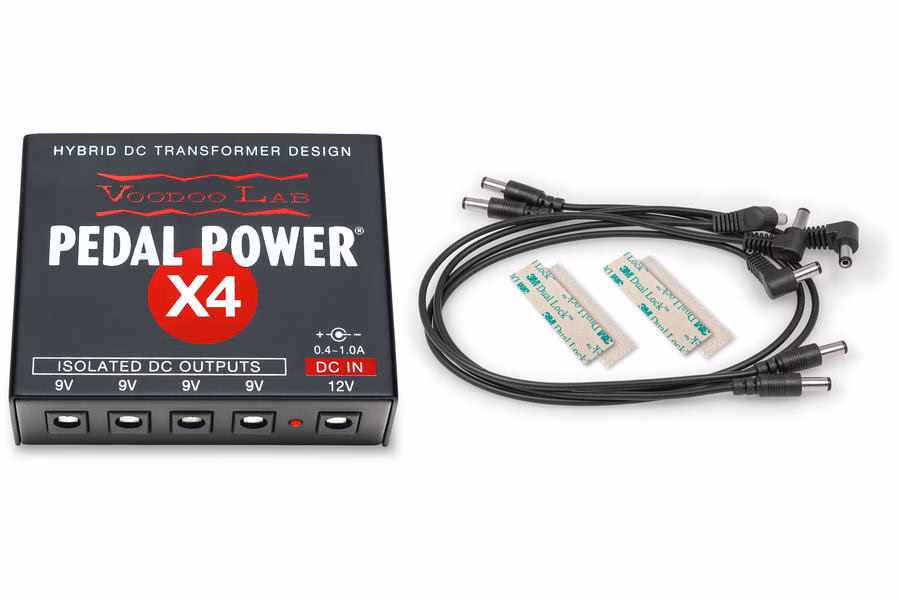

Pedal Power® X4 Expander Kit

Pedal Power® X4 Expander Kit adds four isolated 9V DC outputs to compatible Voodoo Lab® power supplies. Its ultra-compact size makes adding on to your existing system quick and easy, mounting to the even most space-challenged pedalboards. The innovative hybrid DC transformer design of Pedal Power X4 combines exotic components, linear regulation, and computer-optimized filtering to establish industry-leading audiophile quality power that unveils the hidden sonic potential of your rig.

SPECIAL NOTE: The X4 Expander Kit requires a 12V DC power source to operate. Compatible power sources include Pedal Power 3 series X-LINK expansion ports or any Pedal Power 12V DC output of 400mA or more. For use as a stand-alone power supply, choose the full version Pedal Power X4.

Pedal Power X4 Expander Kit Features
  • Adds 4 isolated 9V DC outputs to compatible Pedal Power
  • Powers directly from Pedal Power 3 X-LINK or any 12V out of 400mA or more
  • Each output delivers up to 500mA
  • Ultra-compact, lightweight design for easy mounting to any pedalboard
  • Advanced filtering and linear regulation ensure noise-free audiophile-quality performance
  • Delivers clean, consistent power even with poor AC line conditions
  • Works with battery-operated and high current DSP effects
  • Compatible with Pedal Power 3, ISO-5, Digital, 4X4, and MONDO
  • Includes power cables and 3M Dual Lock for mounting
  • Made in the U.S.A.
Pedal Power X4 Expander Kit Specifications
  • Input
  • 2.1mm barrel jack - center-negative polarity (12V DC only)
  • Output
  • 5.5 x 2.1mm barrel connectors – center negative
  • Short circuit protected
  • Special Features
  • Hybrid DC transformer design
  • Powers from any 12V DC source 400-2000mA
  • Included Cables
  • 2 x PPBAR-RS (18”), 2 x PPBAR-RS12 (12”), 1 X PPBAR (18”)
  • Physical
  • Dimensions: 3.38” x 2.75” x 1” (86 x 70 x 25 mm)
  • Weight: 4 ounces (114g)
  • Warranty
  • 5-year warranty in North America. Other regions contact your country's distributor for warranty details.
