Dingbat® PX Pedalboard with PX-8 PLUS Pedal Switcher

Pedalboard and Pedal Switching All in One!

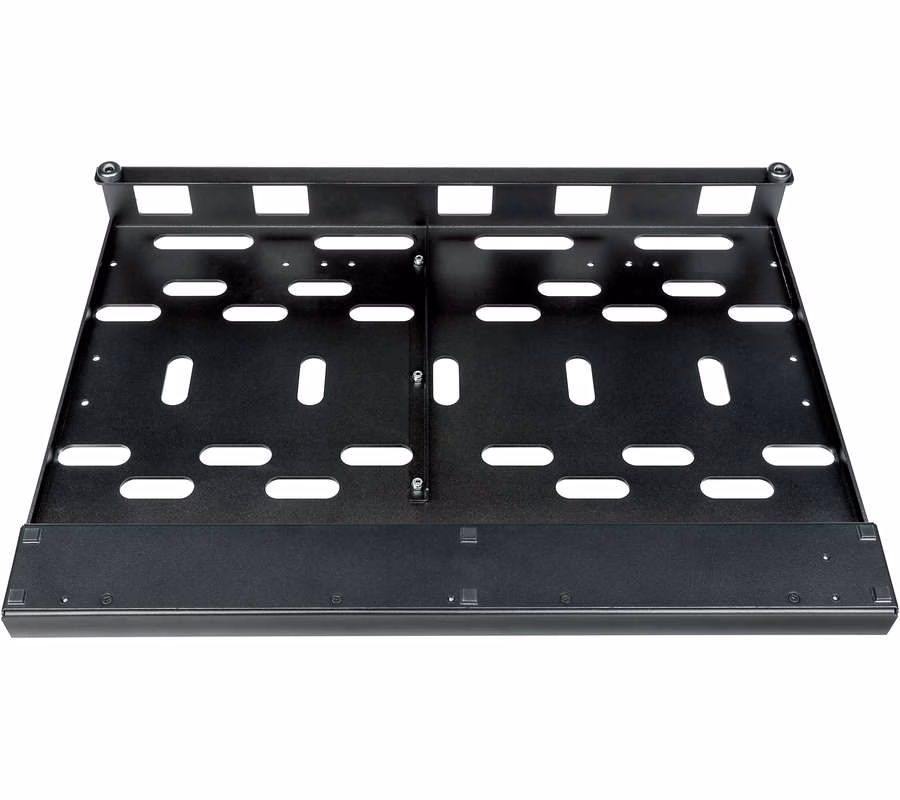

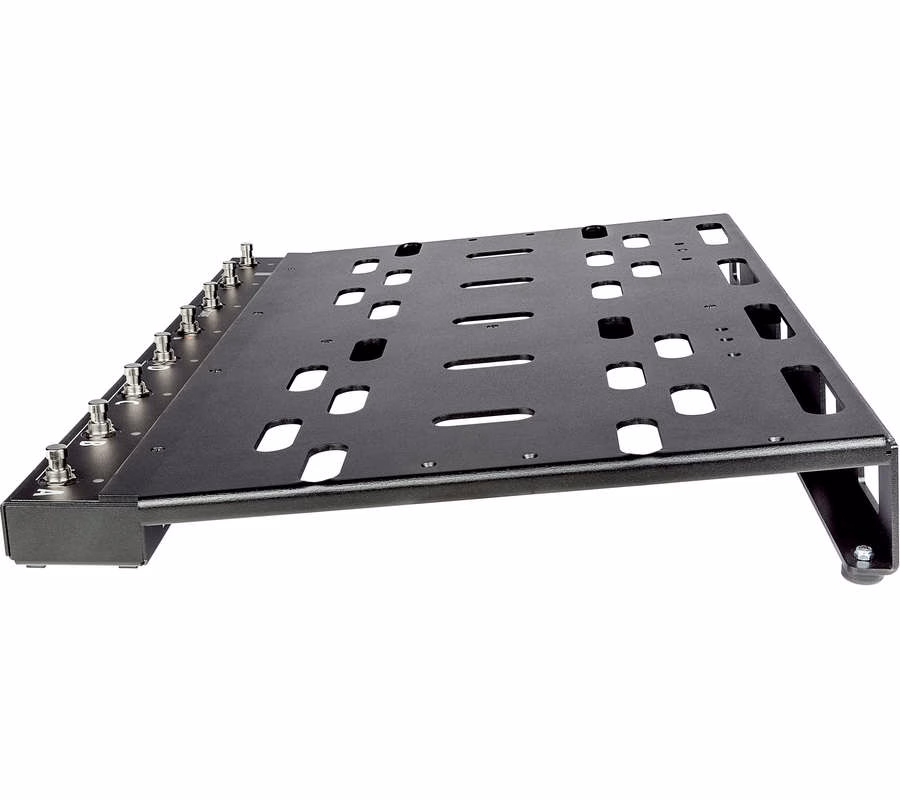

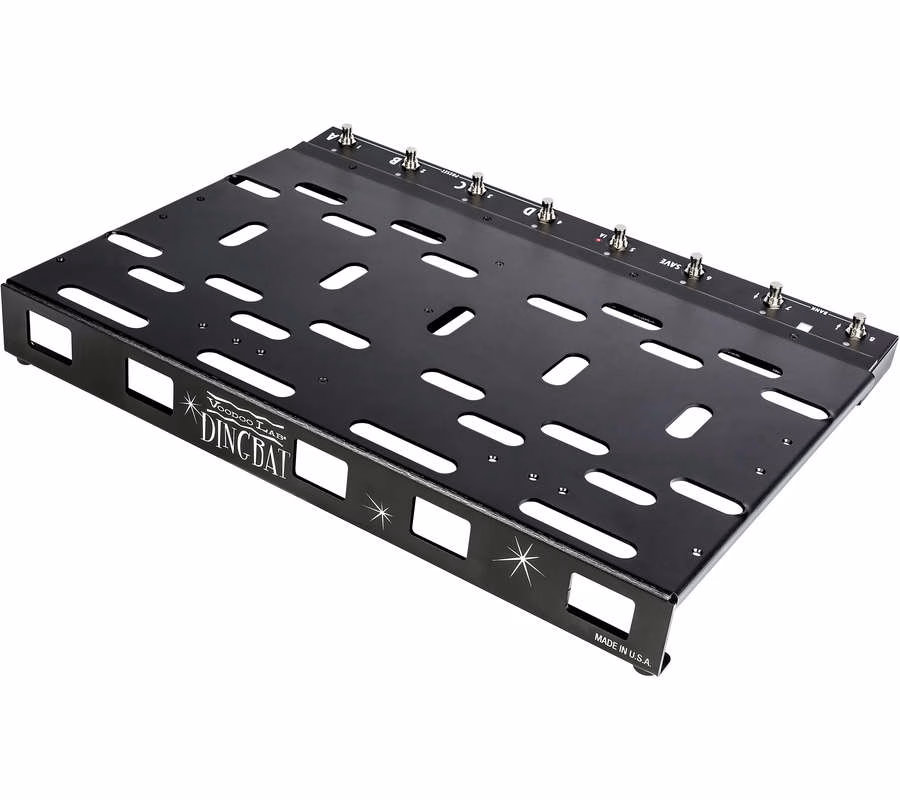

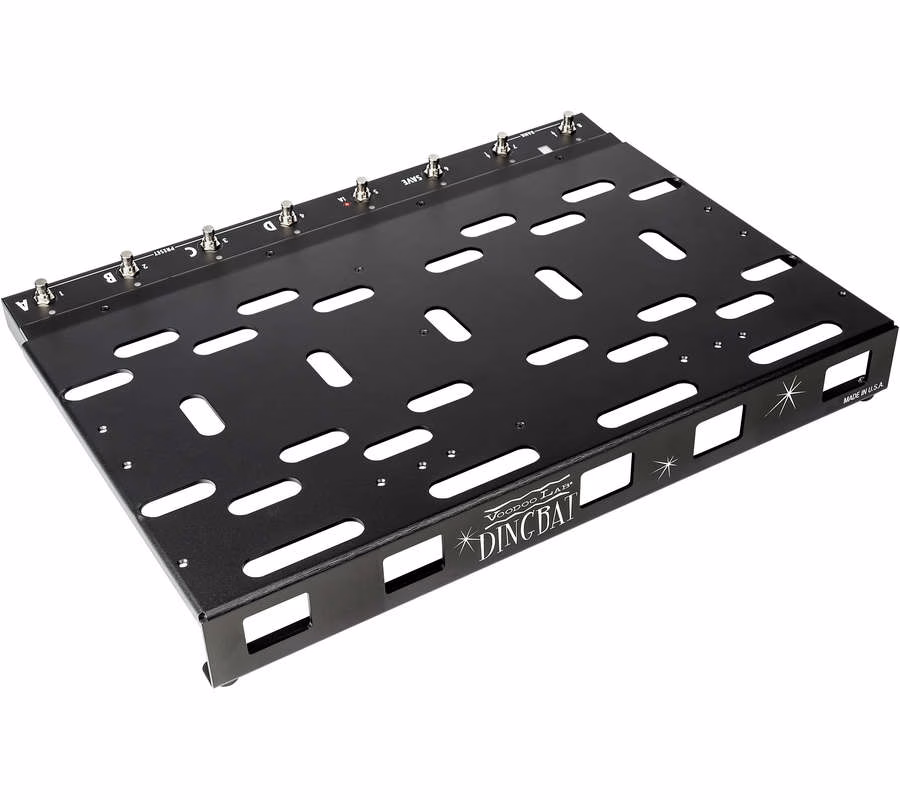

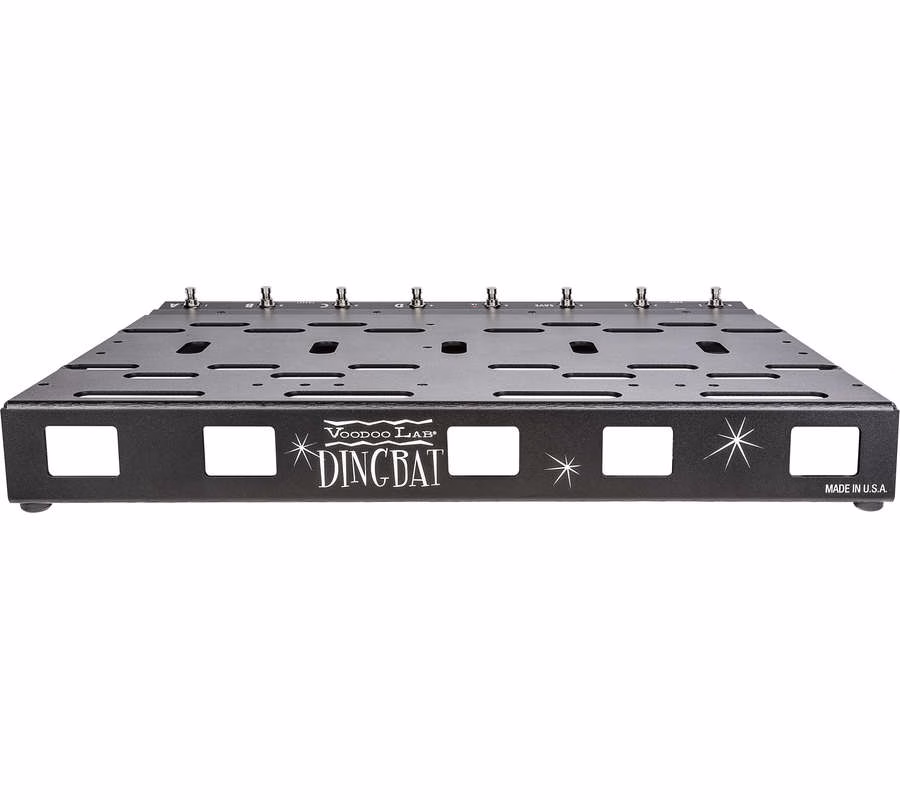

DINGBAT PX pedalboards are based on the Dingbat MEDIUM size platform and include onboard true bypass pedal switching for managing and optimizing the performance of your effects. Its innovative patented design places the switcher beneath the foot of the board, keeping all cabling neatly out of view and preserving maximum space for pedals. Installing Pedal Power® with the included mounting hardware is quick and easy using only a screwdriver. Dingbat PX also features a dedicated position for a second Pedal Power that can be quickly installed with optional mounting brackets. Hook-and-loop tape is provided to attach pedals, as well as zip ties and 4-way tie mounts to secure cabling underneath.

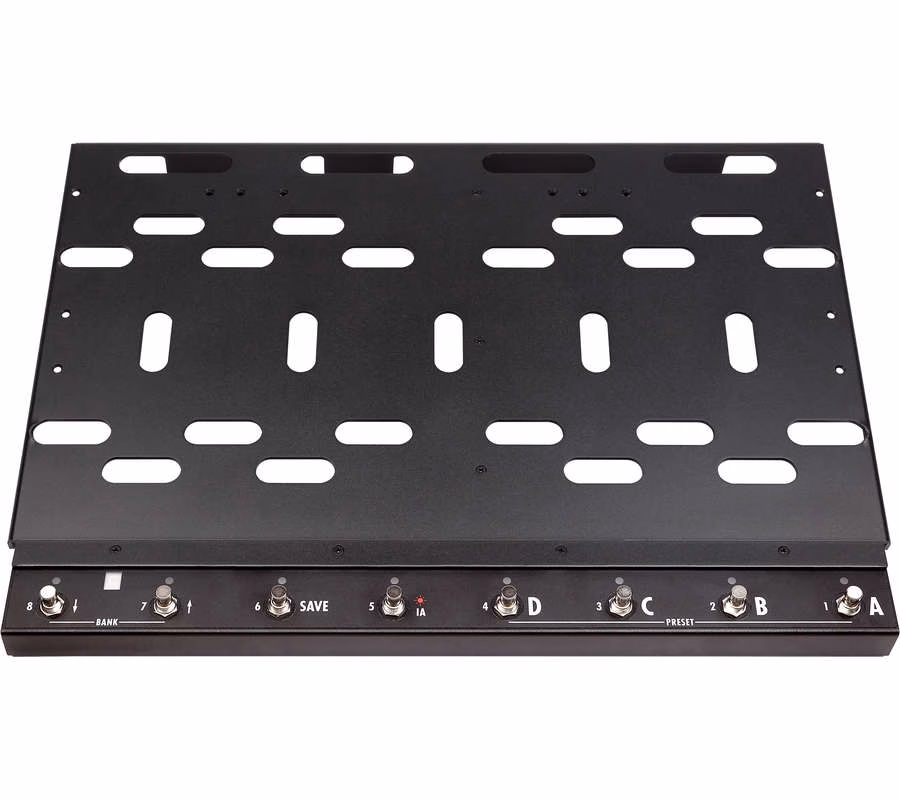

Dingbat PX features a programmable PX-8 PLUS pedal switcher equipped with 8 true-bypass audio loops and 8 premium quality silent-operation footswitches. Simple and intuitive programming allows instant access to 36 user-created preset loop combinations at the touch of a single button. PX-8 PLUS also functions as a simple loop strip to turn on and off individual loops. PX-8 PLUS includes a loop insert point between loops 6 and 7 for placing a volume pedal or other audio device into the signal path and MIDI in and out to exchange program change messages with other MIDI-capable devices.

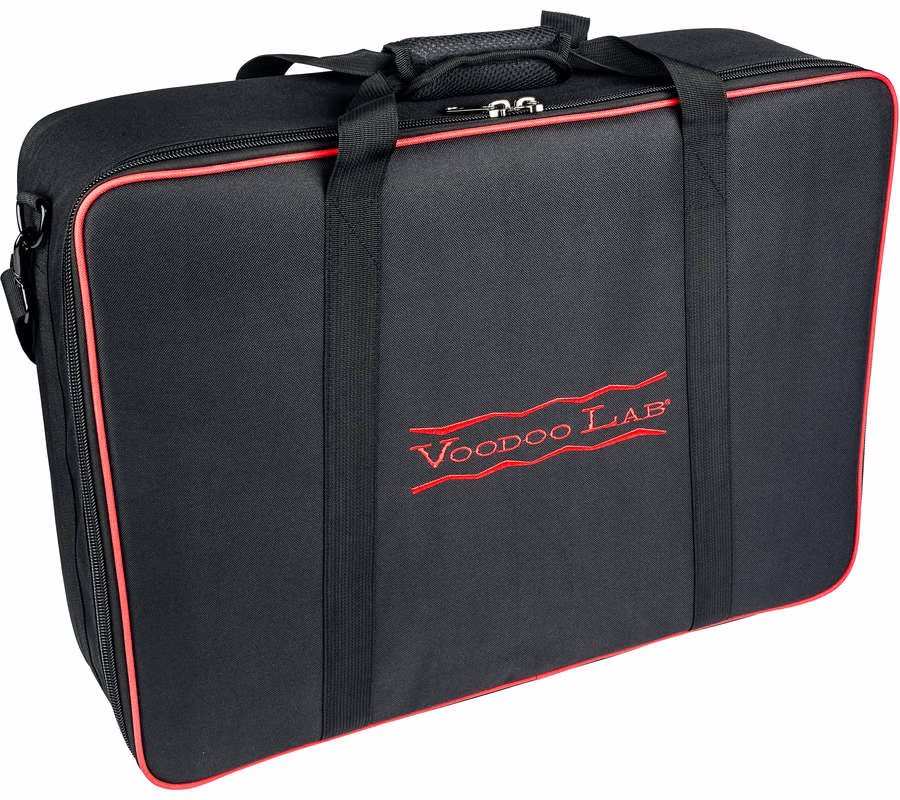

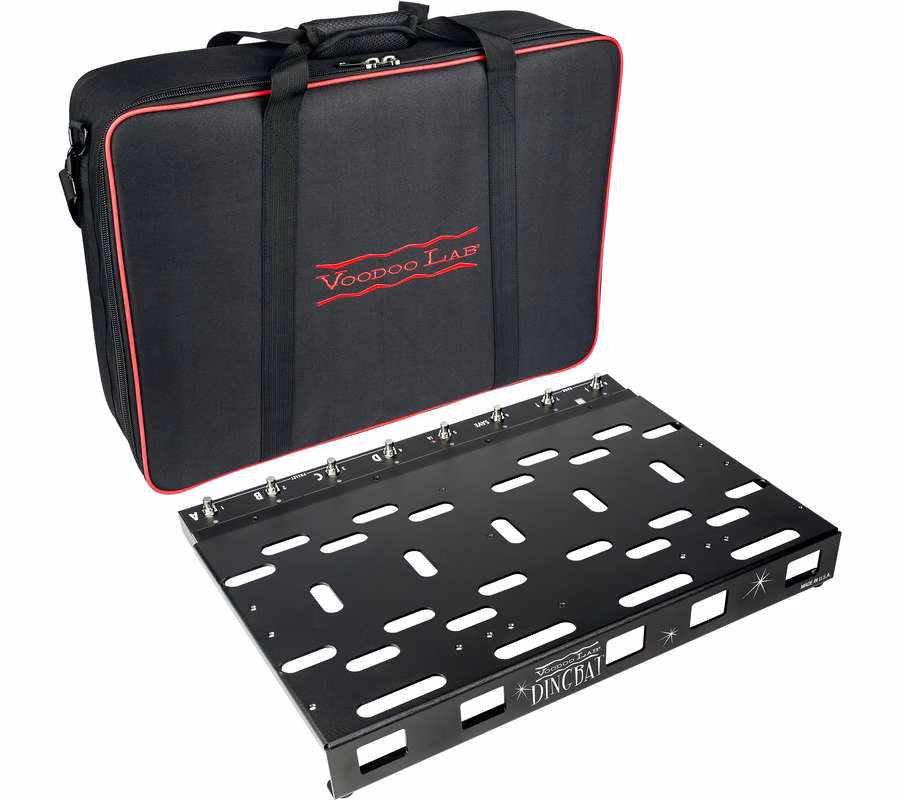

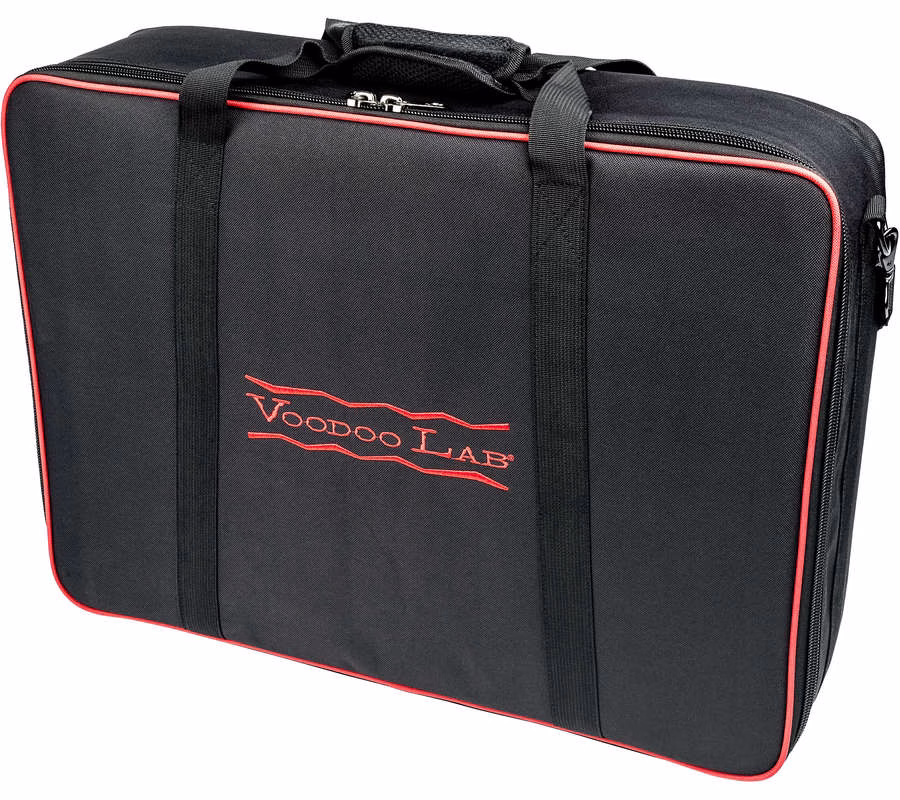

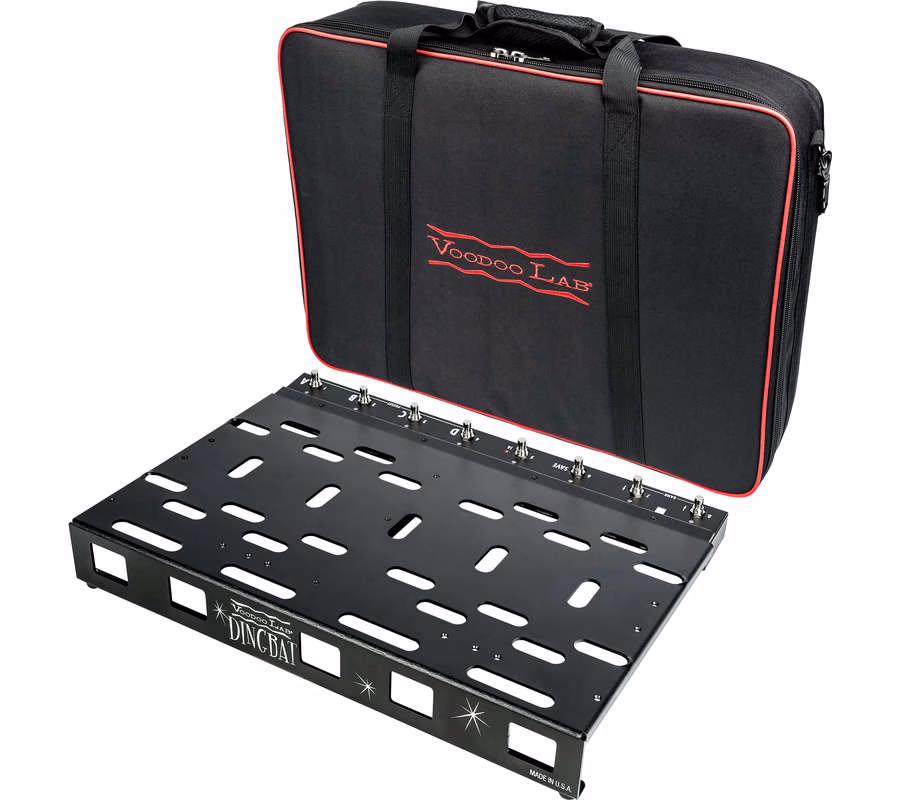

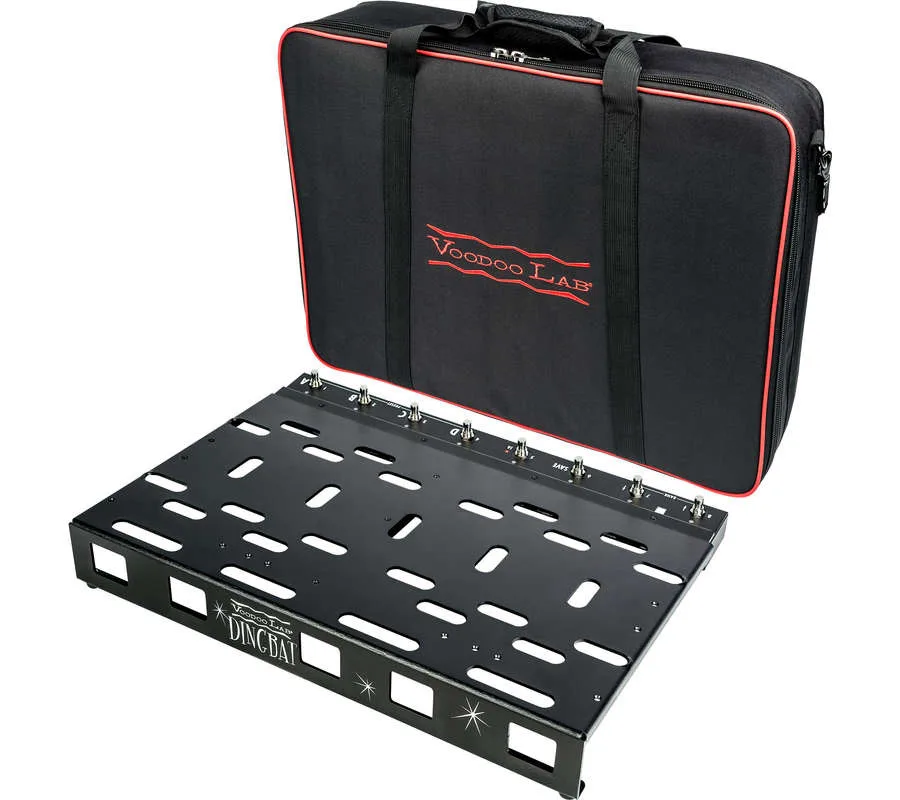

Dingbat PX includes a heavy-duty tour-grade soft case. Premium materials and construction ensure superior performance and long-lasting protection for your pedalboard. A removable shoulder strap and stowable backpack straps are included for easy transportation.

Dingbat Power Packages offer the convenience and added value of a factory-installed Voodoo Lab isolated power supply. Just add pedals and audio cables and you are ready to go. In addition to convenience, a factory-installed Pedal Power ensures any pedal will sound and perform its best. Even under poor AC line conditions, you can always count on Pedal Power to consistently deliver the cleanest, most reliable power possible. Dingbat PX is available bundle-priced with a 12-output Pedal Power 3 PLUS.

IMPORTANT NOTE! The PX-8 PLUS switcher included with the Dingbat PX can NOT be attached to the foot of a standard Voodoo Lab Dingbat pedalboard. For those already owning a PX-8 or PX-8 PLUS switcher interested in purchasing a compatible Dingbat pedalboard to attach either of these switchers, we offer an off-the-menu version of the Dingbat PX without the switcher. Please email sales@voodoolab.com for details.

Dingbat PX Features
  • Innovative patented design
  • Integrated Voodoo Lab PX-8 PLUS True Bypass Programmable Pedal Switcher
  • Crafted from lightweight 6061-T6 aircraft-grade aluminum
  • Pedalboard surface size: 22” x 13.25” (559 x 337mm)
  • Mounting brackets included for easy Pedal Power installation
  • Space for mounting up to two Pedal Power units below pedalboard
  • Adhesive-backed hook-and-loop pedal mounting tape
  • UV-resistant cable ties and 4-way tie mounts
  • Professional tour-grade soft case with premium YKK zipper hardware, padded shoulder strap, and backpack straps
  • Power Package options with factory-installed Pedal Power isolated power supply
  • Power Package only: Includes cables for powering pedals
  • Made in the U.S.A.
Dingbat PX Specifications
  • Physical
  • Dimensions including switcher: 22" x 16" x 2.75" (457 x 337 x 70mm)
  • Weight: 6.45 lbs. (2.93kg)
  • Soft Case
  • Dimensions: 25” x 18.5” x 7” (635 x 470 x 178 mm)
  • Weight: : 3.6 lbs. (1.63kg)
  • PX-8 PLUS Switcher Ins & Outs
  • 8 programmable audio loops + insert loop between loops 6 & 7
  • MIDI IN and OUT for receiving and sending program changes
  • PX-8 PLUS Switcher Power Requirements
  • 9V DC 100mA - Standard 5.5x2.1mm center negative barrel connector
  • Power Package Options
  • Pedal Power 3 PLUS (12 isolated outs + Expansion capability)
  • Warranty
  • 5-year warranty in North America. Other regions contact your country's distributor for warranty details.
Compatible Power Supplies

Pedal Power ISO-5  | Pedal Power Digital

Pedal Power 2 PLUS | Pedal Power 4X4

Pedal Power 3 | Pedal Power 3 PLUS

Pedal Power MONDO

Pedal Power X4 and X8 power supplies mount below Dingbat pedalboards using 3M™ Dual Lock™. No mounting brackets required.
