Giggity Features
- SUN/MOON dial selects from four distinct preamp/gain voicings
- BODY & AIR controls fine-tune preamp sonic character
- Plexi Top Panel
- True Bypass via high-reliability gold-contact relay
- Hand-built in the U.S.A.
Giggity Specifications
Dimensions
4.75” x 3.75” x 2” (121 x 95 x 51mm)
Weight
1.15 lbs. (520g)
Power Requirements
9V DC, 35mA
Power Input Type
5.5mm x 2.1mm barrel connector, center negative polarity
Product ID
VG
Warranty
5-year limited warranty in North America. Please contact your region's authorized Voodoo Lab distributor for warranty service outside North America.

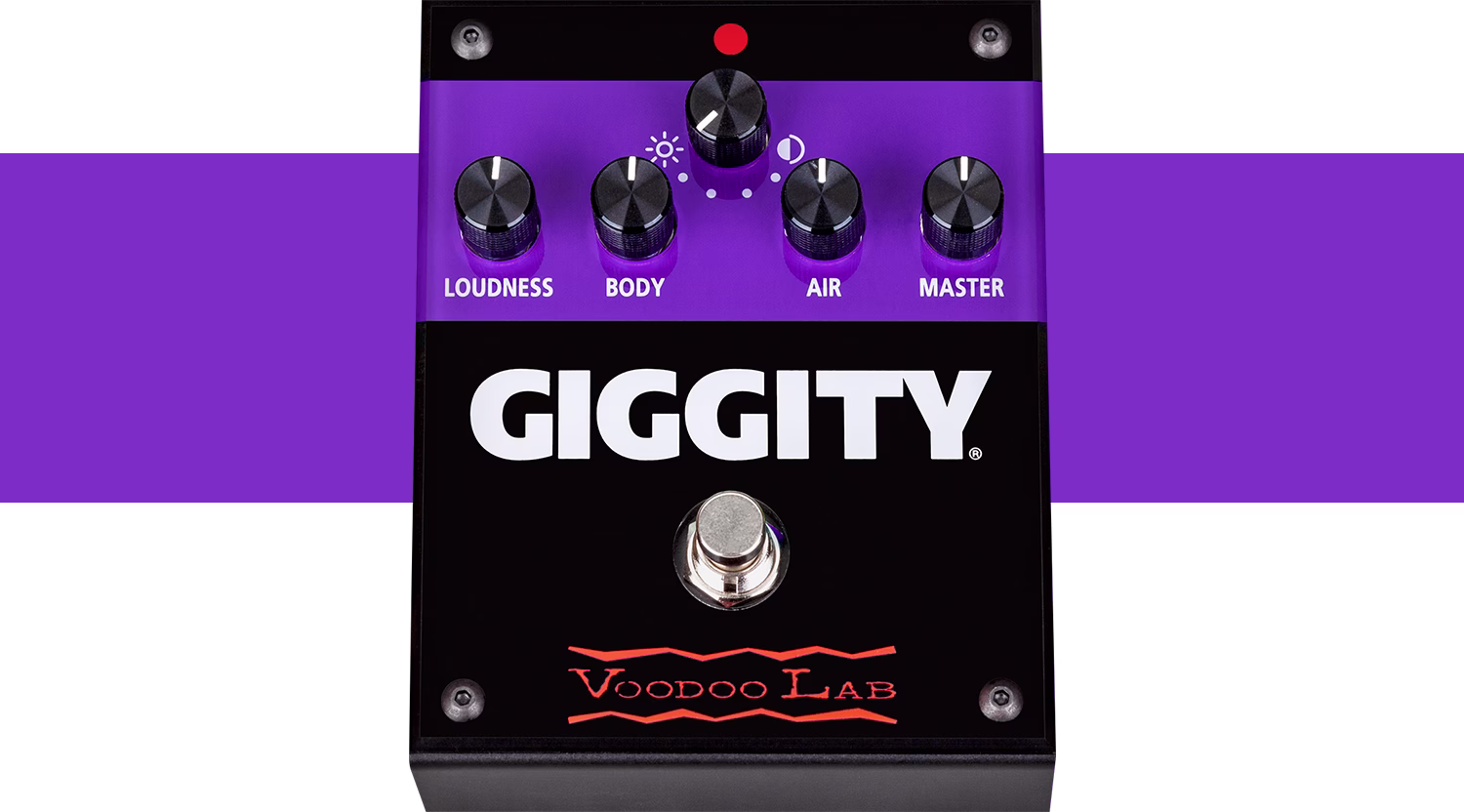

GIGGITY CONTROLS
LOUDNESS – Sets the input gain for Giggity’s preamp section. Use low settings for clean sounds, or turn it all the way up for a little grit and compression.
SUN/MOON SELECTOR – Four-position control that selects the overall gain structure and voicing of Giggity’s preamp section. SUN adds shimmering high-end. MOON adds weight and warmth.
BODY – Boosts or cuts your signal’s lower midrange/upper bass frequencies. With the knob at 12 o’clock (which is equal to 0dB of cut or boost), turn it clockwise to add Body. Turning the knob counter-clockwise cuts the Body frequencies
AIR – Boosts or cuts the higher treble frequencies of your signal. With the knob at 12 o’clock (which is equal to 0dB of cut or boost), turn it clockwise to add shimmer and presence. Turning the knob counter-clockwise cuts the Air frequencies.
MASTER – Sets the overall output level.
Dimensions | 4.75” x 3.75” x 2” (121 x 95 x 51mm) |
---|---|
Weight | 1.15 lbs. (520g) |
Power Requirements | 9V DC, 35mA |
Power Input Type | 5.5mm x 2.1mm barrel connector, center negative polarity |
Product ID | VD |
Warranty | 5-year limited warranty in North America. For warranty service outside North America, please contact your region's authorized Voodoo Lab distributor. |
